Default Disassembly and reassembly of a mossberg 500.


As I cleaned a mossberg 500 today, I decided to take photos step by step throughout the entire process. Here are those photos with explanations for each step of the process.

Put safety on, Check to make sure firearm is unloaded, Pump forarm back and forth, Double check to make sure firearm is unloaded! , pull forearm back 1/2 way and remove barrel,

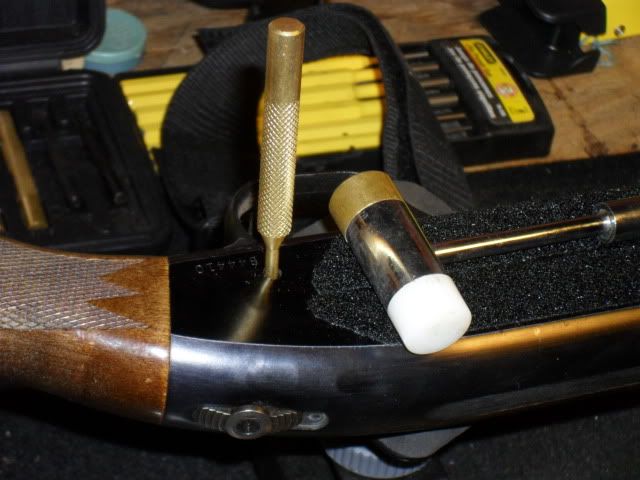

remove trigger guard retaining pin [ located bottom rear of receiver],

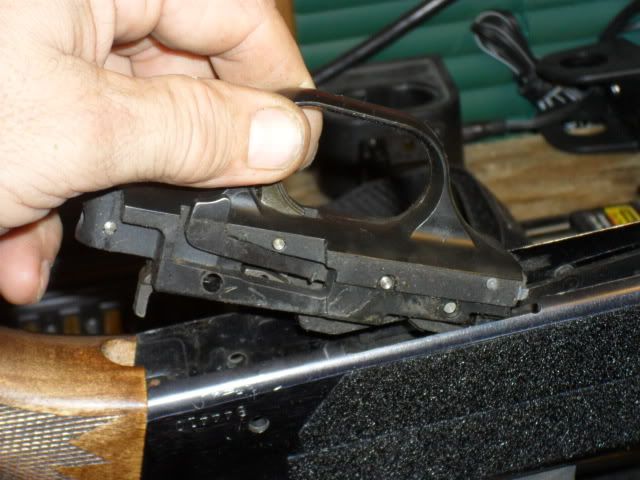

remove trigger group [pull up on rear of trigger guard and pull trigger group rearward],




remove cartridge stops,

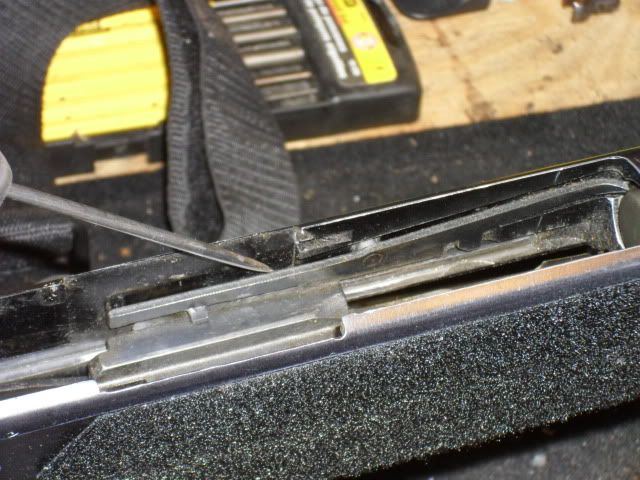

remove bolt slide plate,





push forearm forward and off ammo tube,

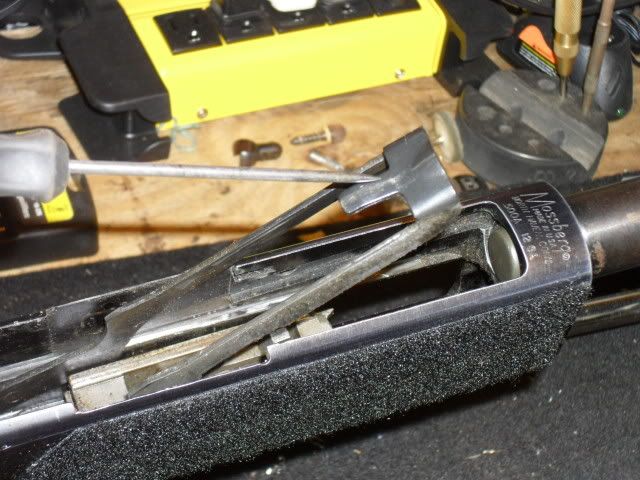

remove cartridge elevator [squeeze rear of elevator until pins pop out of holes in each side of receiver, then lift out] ,

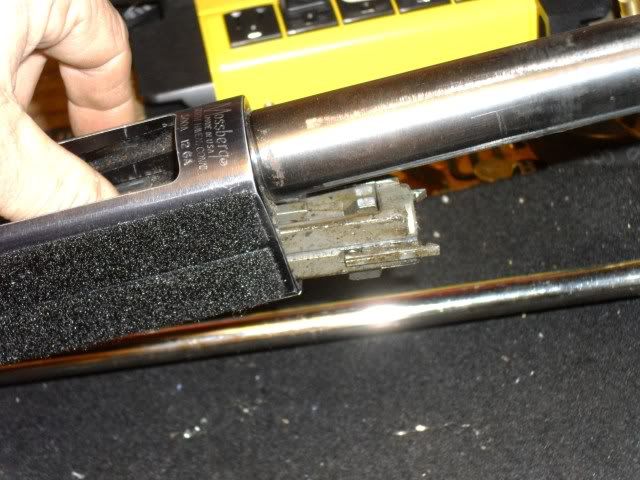

remove bolt body[ slide forward and out barrel hole in front of receiver].

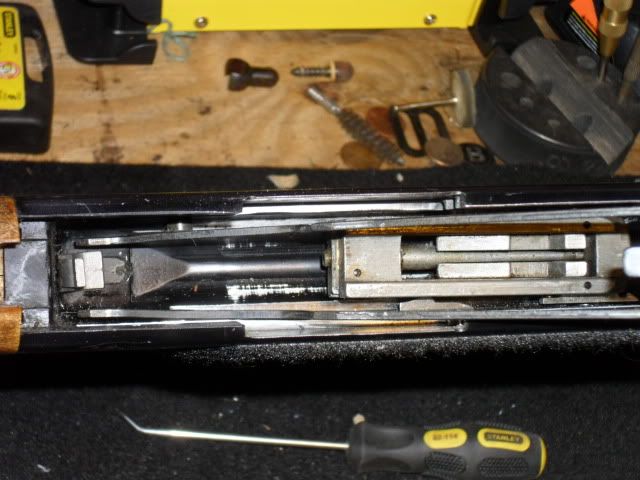

Receiver is now empty and ready for cleaning.








Reassembly.

Insert bolt through barrel hole in front of receiver, with extractors forward,




install cartridge elevator, [squeeze together and insert pins into mating holes]





Push front of cartridge elevator down onto bolt body,

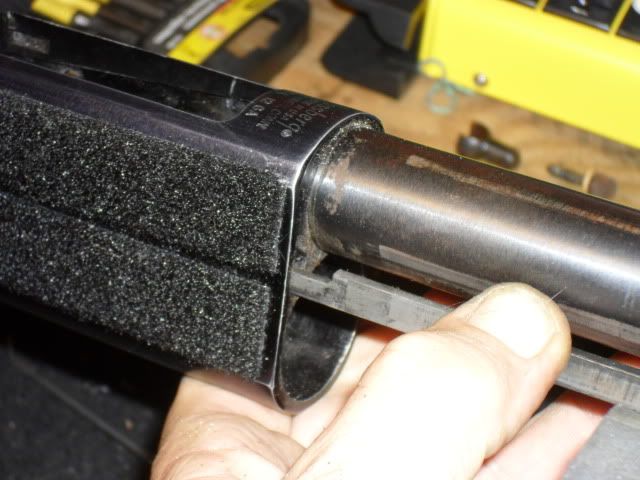

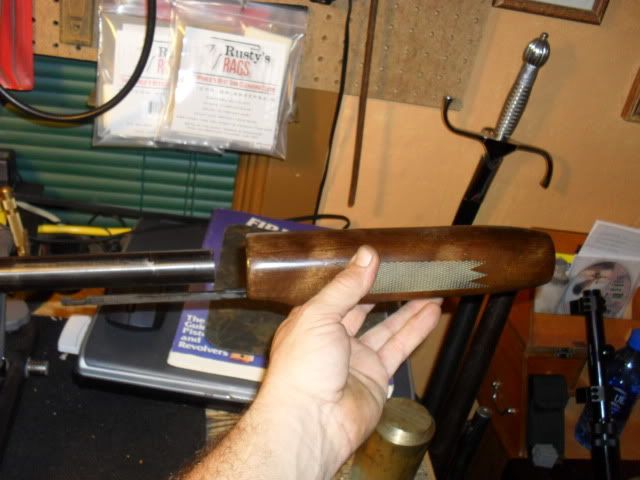

slide forearm onto ammunition tube and slide end of action bar into mating slot on receiver [push end of action bar toward top of receiver and slide toward rear of firearm to insert action bar into receiver]

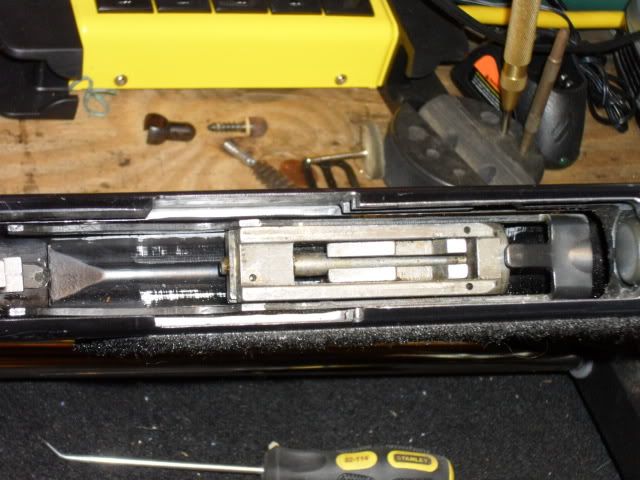

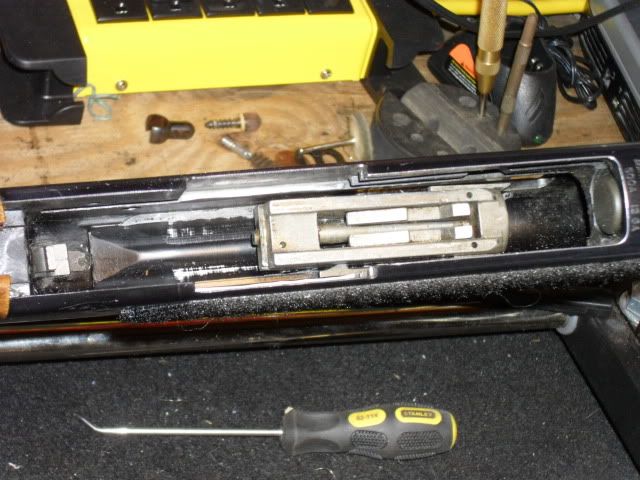

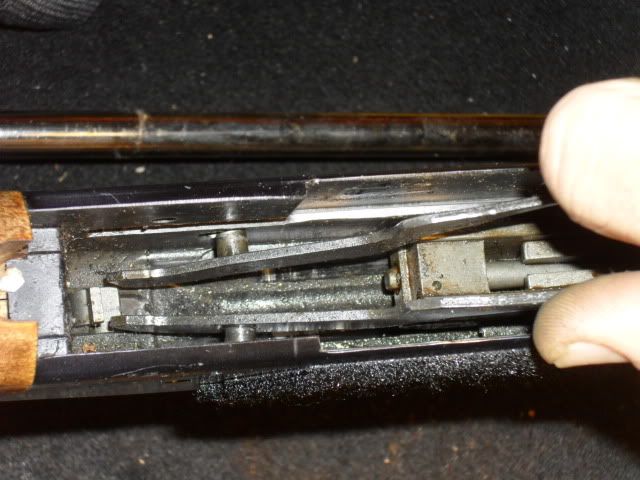

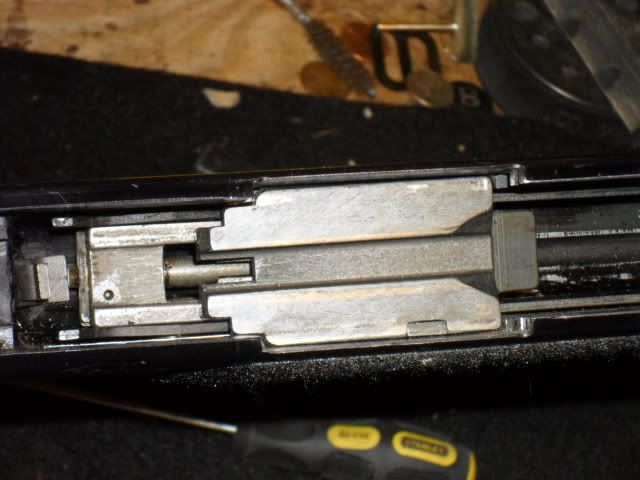

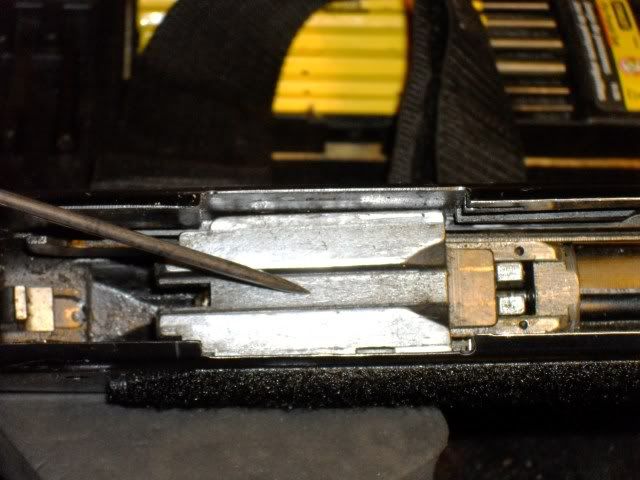

Install bolt slide plate into receiver, lining it up on top of action bar and into bolt body [this is a bit tricky so make sure the action bar , bolt slide plate and bolt body mate perfectly , you may need to wiggle all three around a bit. The bolt slide plate will only drop into the receiver in the bolt slide plate cut out area.]

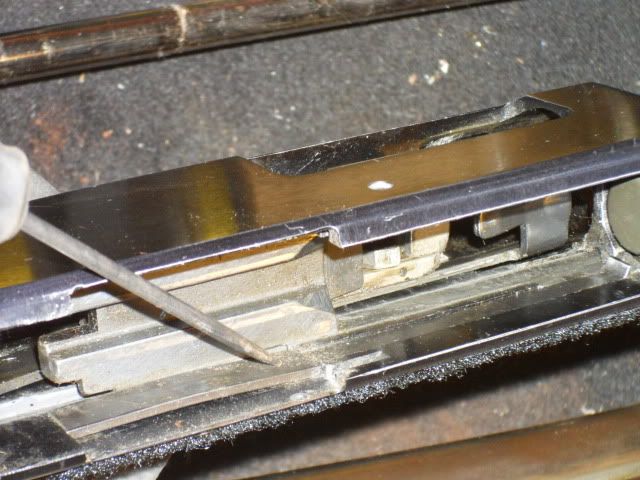

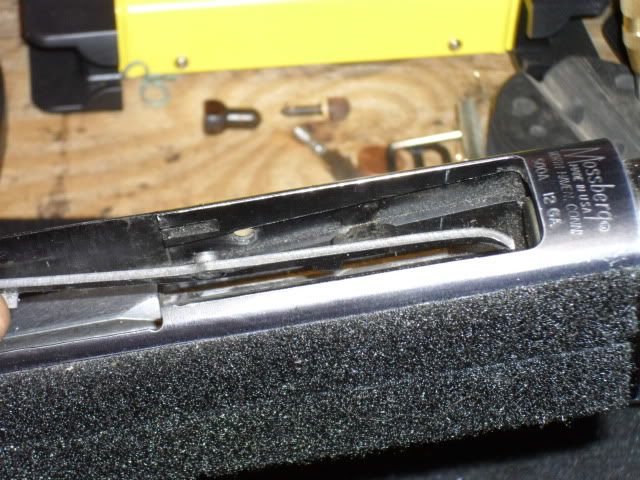

Install cartridge stops, [The one on the side of the ammo ejection port is the smaller of the two, it is also the one with the pin that inserts into the mating hole in the receiver , the larger of the two installs on the solid side of the receiver. Both install hooked end inward]

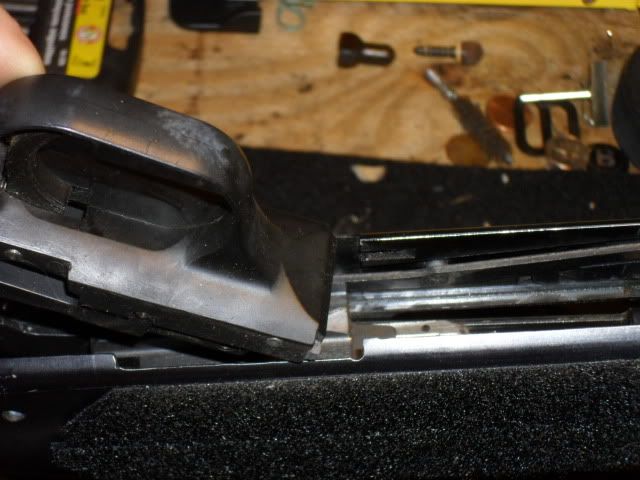

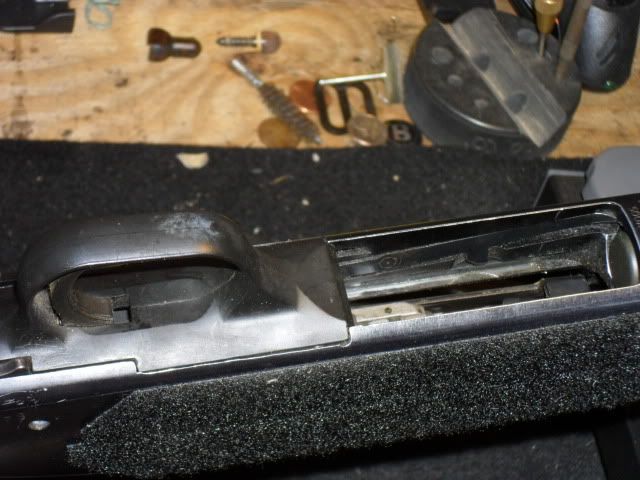

install trigger group [while holding cartridge stops in place install trigger group, front in first then snap trigger group down in rear]

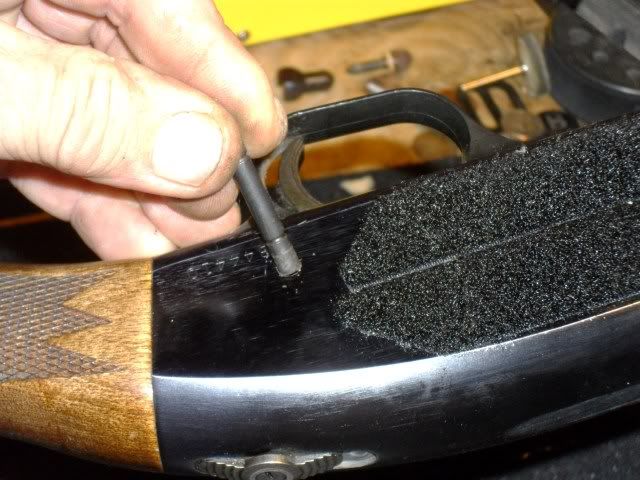

install trigger guard pin,





reinstall barrel.
Firearm should now be reassembled and ready for function test.
__________________
911JB is offline

Quick reply to this message
Old 01-15-2011, 02:41 AM   #2
GrouchyVet
Feedback Score: 0 reviews

Join Date: Oct 2010
Posts: 872
Liked 3 Times on 3 Posts

Default Re: Disassembly and reassembly of a mossberg 500.

Hey thanks for the neat post 911JB. They need to make this one a sticky.


__________________
GrouchyVet is offline

Quick reply to this message
Old 01-15-2011, 09:32 AM   #3
911JB
Premium Supporter
Feedback Score: 0 reviews

911JB's Avatar

Join Date: Feb 2009
Location: IOWA
Posts: 944
Liked 20 Times on 12 Posts
Likes Given: 31

Default Re: Disassembly and reassembly of a mossberg 500.

Quote:
Hey thanks for the neat post 911JB. They need to make this one a sticky.
Thank you sir. I know how many people own 500's and hopefully this will ease their cleaning efforts.
__________________
911JB is offline

Quick reply to this message
Old 01-15-2011, 11:56 AM   #4
Super_Virgil
Feedback Score: 0 reviews

Join Date: Oct 2007
Location: Independence, Missouri
Posts: 5,757
Liked 5 Times on 3 Posts

Send a message via AIM to Super_Virgil Send a message via Yahoo to Super_Virgil
Default Re: Disassembly and reassembly of a mossberg 500.

Great Post man. It should also be noted that this can be used or a maverick 88 as well.

__________________

Fate rarely calls upon us at a moment of our choosing.
Optimus Prime

You can find me at Pioneer Gun Club. Kansas city's only comprehensive gun club www.pioneergunclub.org

Super_Virgil is offline

Quick reply to this message
Old 01-15-2011, 01:51 PM   #5
911JB
Premium Supporter
Feedback Score: 0 reviews

911JB's Avatar

Join Date: Feb 2009
Location: IOWA
Posts: 944
Liked 20 Times on 12 Posts
Likes Given: 31

Default Re: Disassembly and reassembly of a mossberg 500.

Thanks for the complement Super Virgil. And yes, I should have said 500's and variants. Thanks for pointing that out.

__________________
911JB is offline

Quick reply to this message
Old 01-15-2011, 02:18 PM   #6
LRTEKE
Feedback Score: 0 reviews

Join Date: Jun 2009
Location: North Carolina
Posts: 1,131
Default Re: Disassembly and reassembly of a mossberg 500.

i have a mossberg 500, 20 ga with the c-lect a choke (got it for a b day present from my dad when i was in my early teens)...any opinion on this?

__________________
LRTEKE is offline

Quick reply to this message
Old 01-15-2011, 02:33 PM   #7
911JB
Premium Supporter
Feedback Score: 0 reviews

911JB's Avatar

Join Date: Feb 2009
Location: IOWA
Posts: 944
Liked 20 Times on 12 Posts
Likes Given: 31

Default Re: Disassembly and reassembly of a mossberg 500.

I have a 1/2 dozen 500's, one of those being a 20g. In fact that is what I used to take my buck this year during deer season. They are a fine firearm and this procedure can be used to clean the 20g.
As a side note, I charge $20.00 for this procedure at my shop, but there are some smiths that charge up to $40.00 for this.
If you attempt this procedure feel free to ask questions. I will do my best to answer those questions and talk you through it.

JB
